UML Profile for Benefits Realisation Management – 2 #

This is a follow on from UML Profile for Benefits Realisation Management – 1. In  that post I described the basic UML profile I have created for modelling project benefits in line with [Bradley][2] and [Ward & Daniels][3]

Having started to apply the profile successfully, I wanted to extend it to model measures,

These were modelled by meta-classing Class

Extending Benefits Model with Measures

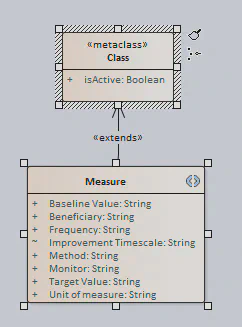

As can be seen from this diagram, I have added a number of tagged values (which are modelled as attributes in the UML profile) to cover off the typical data that needs to be captured in relation to a measure.
